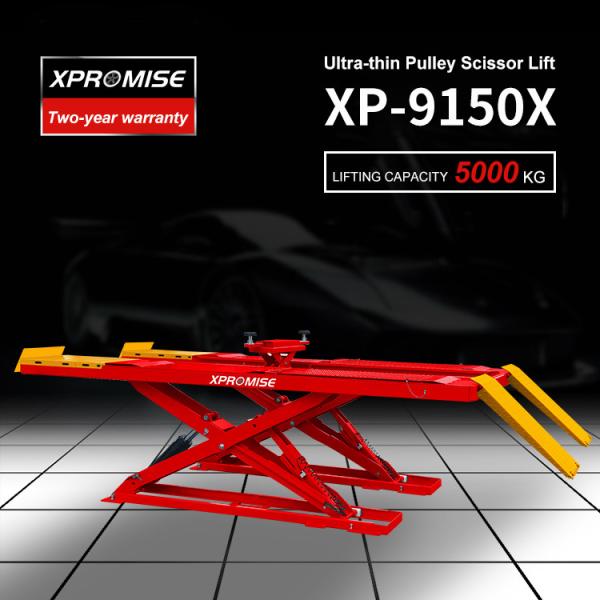

XP-9150X

Ultra-thinPulley ScissorLift

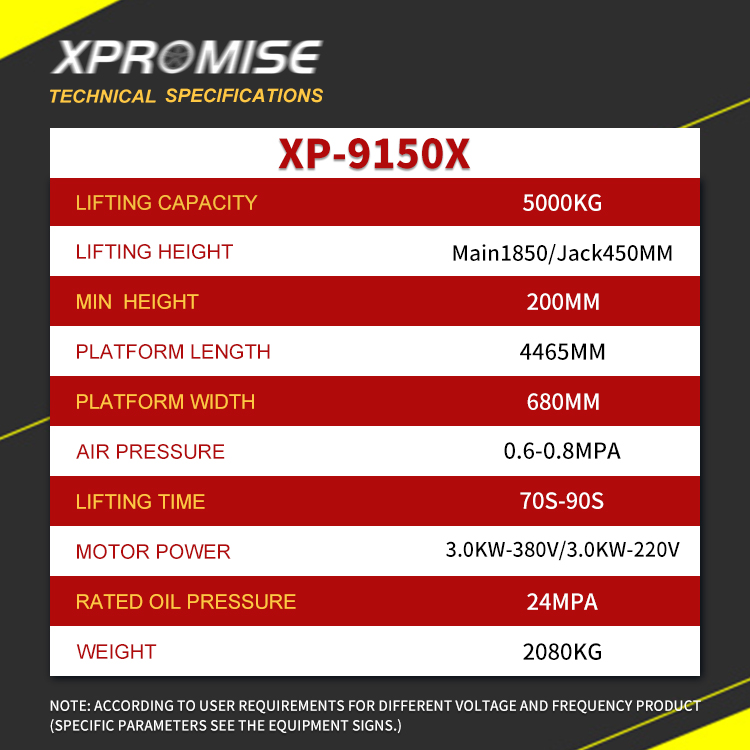

TECHNICAL SPECIFICATIONS

Lifting Capacity：5000kg

Lifting Height：(Main)1850(jack)450mm

Min. Height：200mm

Lifting Time：70s-90s

Platform Length：4465mm

Platform Width：680mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：2080kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.High strength Q355B manganese plate arm.

2.Pneumatic safety lock.

3.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

4.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

5.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

6.Double cup oil-water separator.（Optional）

7.Front and behind door electronic control box.

8.24V safety electronic control.

9.4 cylinders structure, running stable.

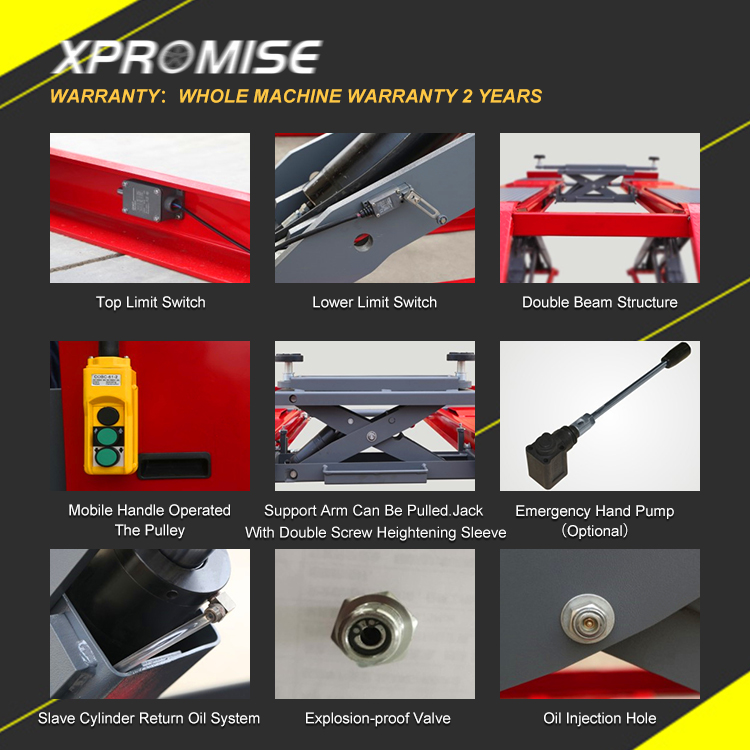

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch（Optional）

2.Lower Limit Switch（Optional）

3.Double Beam Structure

4.Mobile Handle Operated The Pulley

5.Oil Injection Hole

6.Explosion-proof Valve（Optional）

7.Slave Cylinder Return Oil System

8.Support Arm Can Be Pulled,Jack With Double Screw Heightening Sleeve

9.Emergency Hand Pump（Optional）
