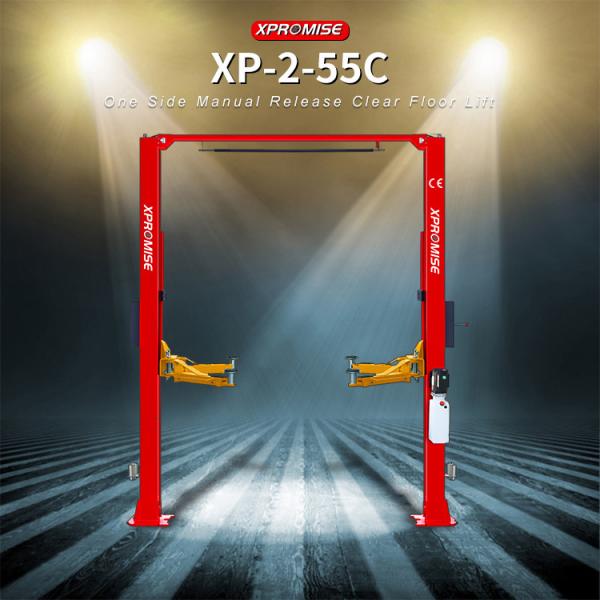

XP-2-55C

One Side Manual Release Clear Floor Lift

TECHNICAL SPECIFICATIONS

Lifting Capacity：5500kg

Lifting Height：1900mm

Min. Height：110mm

Through Width：3055mm

Total Width：4158mm

Total Height：4500mm

Lifting Time：50s-60s

Motor Power：3.0KW-380V or3.0KW-220V

Rated Oil Pressure：24MРа

Weight：1050kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

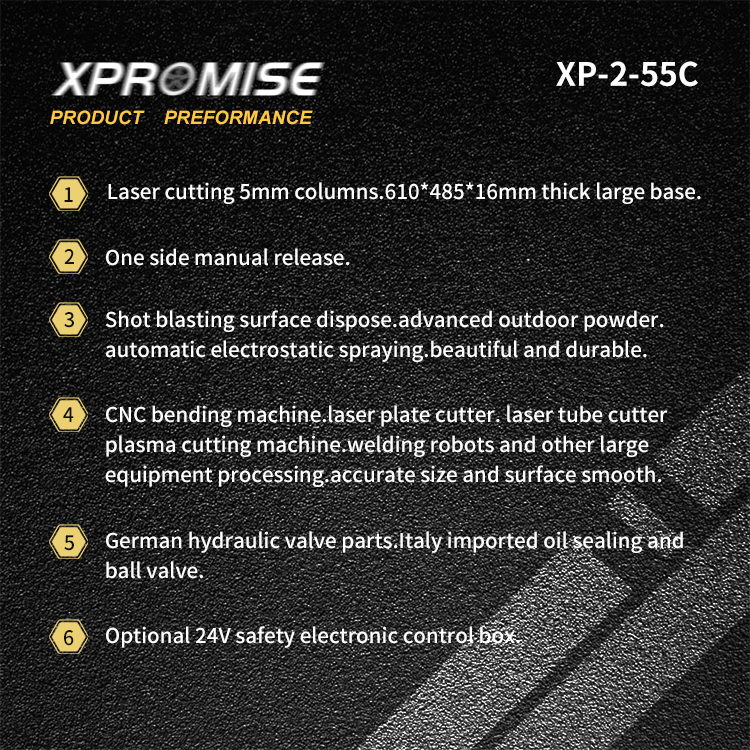

1.Laser cutting 5mm columns, 610*485*16mm thick large base.

2.One side manual release.

3.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

4.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

5.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

6.24V safety electronic control box.(Optional )

WARRANTY：Whole machine warranty 2 years.

1.Integral Forming Slide Table

2.3+2 Arm, with Toe Protection Guard Bar(Optional)

3.Butterfly Stiffener

4.Anti-clamp Guard

5.4*4chain

6.Explosion-proof Valve

7.Bowl Pattern and Single Screw Pad+height Adapter

8.Chain Shield

9.Emergency Hand Pump（Optional）
