TRUCK 3D WHEEL ALIGNMENT
XP-A12
Measurement Accuracy
Measurement project | Accuracy | Measurement range |
Display accuracy | 1´/1mm | |
Camber | ±2´ | ±10° |
Caster | ±6´ | ±20° |
Kingpin inclination | ±6´ | ±20° |
Toe-in & Toe-out | ±2´ | ±20° |
Set back | ±2´ | ±5° |
Thrust angle | ±2´ | ±5° |
Wheel deviation | ±2mm | 4000mm |
Axis deviation | ±2mm | 4000mm |

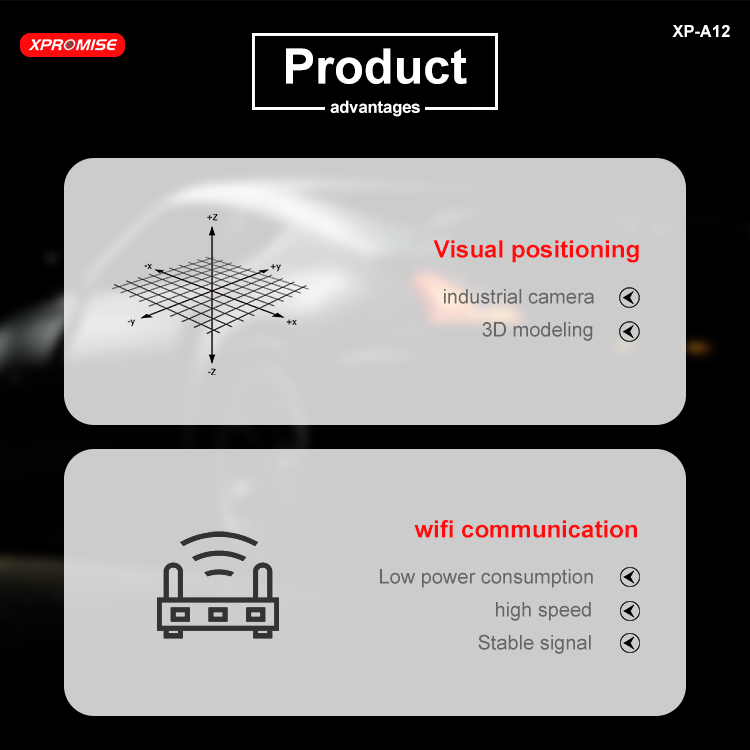

The machine vision system automatically identifies the position of the target plateand the target probe mounted on the wheel under test, thus enabling a highly accurate calculation of its geometric position in space.The main component of the machine vision system is the camera, which takes real-time photos of the flat target board stuck on the wheel.Camera image transmission is automatically controlled by the computer command to transfer the image to the PC (computer) according to the TCP / IP protocol.The software processes the images received from the camera and identifies the target from the frame image.After that, the machine vision subsystem calculates the three-dimensional coordinates for each spatial target.These three-dimensional coordinates are used to calculate the respective wheel positioning values.

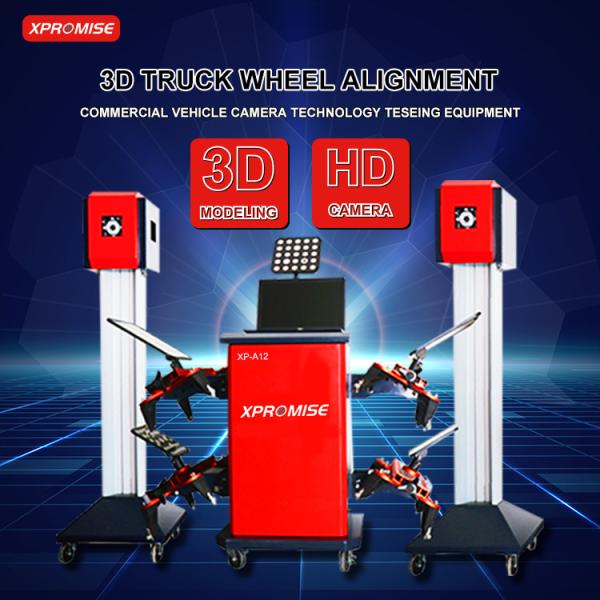

1.Mobile cabinet*1
2.Mobilealuminum post with camera *2
3.Brand-name laptop computer *1
4.Wireless router*1
5.Target plate *4
6.16”- 24”clamp *4
7.Steel turntable plate *2
8.Detection needle *1

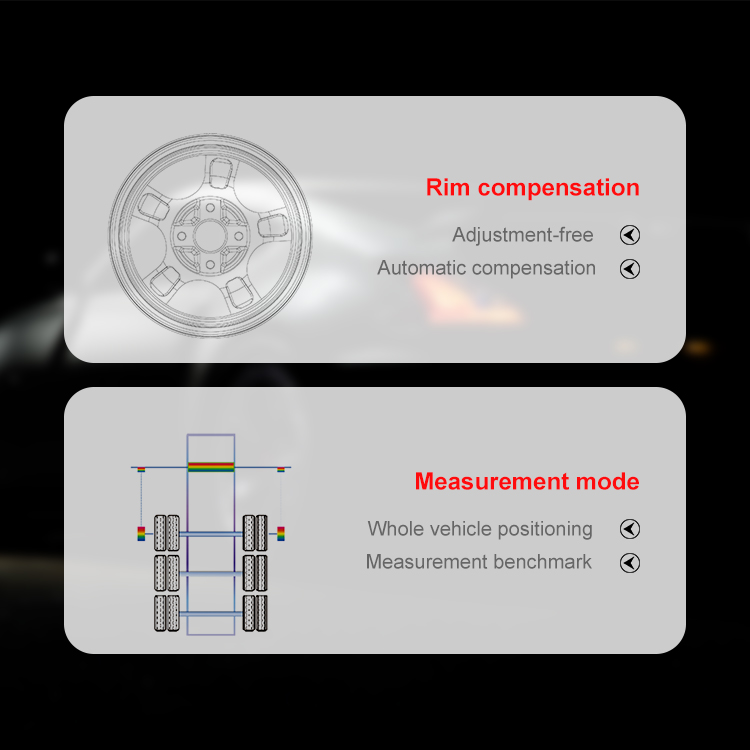

Product Features
1.Higher accuracy and more powerful functions. Its accuracy can be accurate to 0.1mm/0.01°its function can not only realize all the traditional parameters, but also can measure the frameparameters, and easily realize many functions that CCD and laser locator cannot complete.
2.The operation is more convenient. The measurement is not affected by the level of theplatform; it only needs to push the car or the supporting wheel mode to complete themeasurement of all parameters; it can be moved and used at will.
3.The failure rate is extremely low. The target board has no electronic components, no batteryno data transmission, and only serves as a reflection of the image; the main frame is a metalframe, and the column is a cast body, which is resistant to corrosion and pressure; thecomputer is mostly brand high-end configuration, To adapt to large data processing, theperformance is more stable.
4.Dual mode measurement: you can select drive axle measurement or drive axlemeasurement mode.
|
|
